Original price was: $6,296.00.$4,703.00Current price is: $4,703.00.
Model: MD1CKTPN2C-XXX
Flow Rate: 22 GPH (83.3 LPH)
Pressure Rating: Up to 150 PSI
Control: VFD (Variable Frequency Drive) – allows for speed modulation via manual control or remote signals
Pump Type: Mechanically actuated diaphragm metering pump
Construction: Chemical-resistant materials (PVC, PVDF, or Polypropylene)
Power Supply: Typically 115V or 230V depending on configuration
Stroke Length Adjustment: Manual setting for fine-tuned control
Mounting: Base-mounted for easy installation and stability
Duty Rating: Continuous-duty motor for 24/7 operation

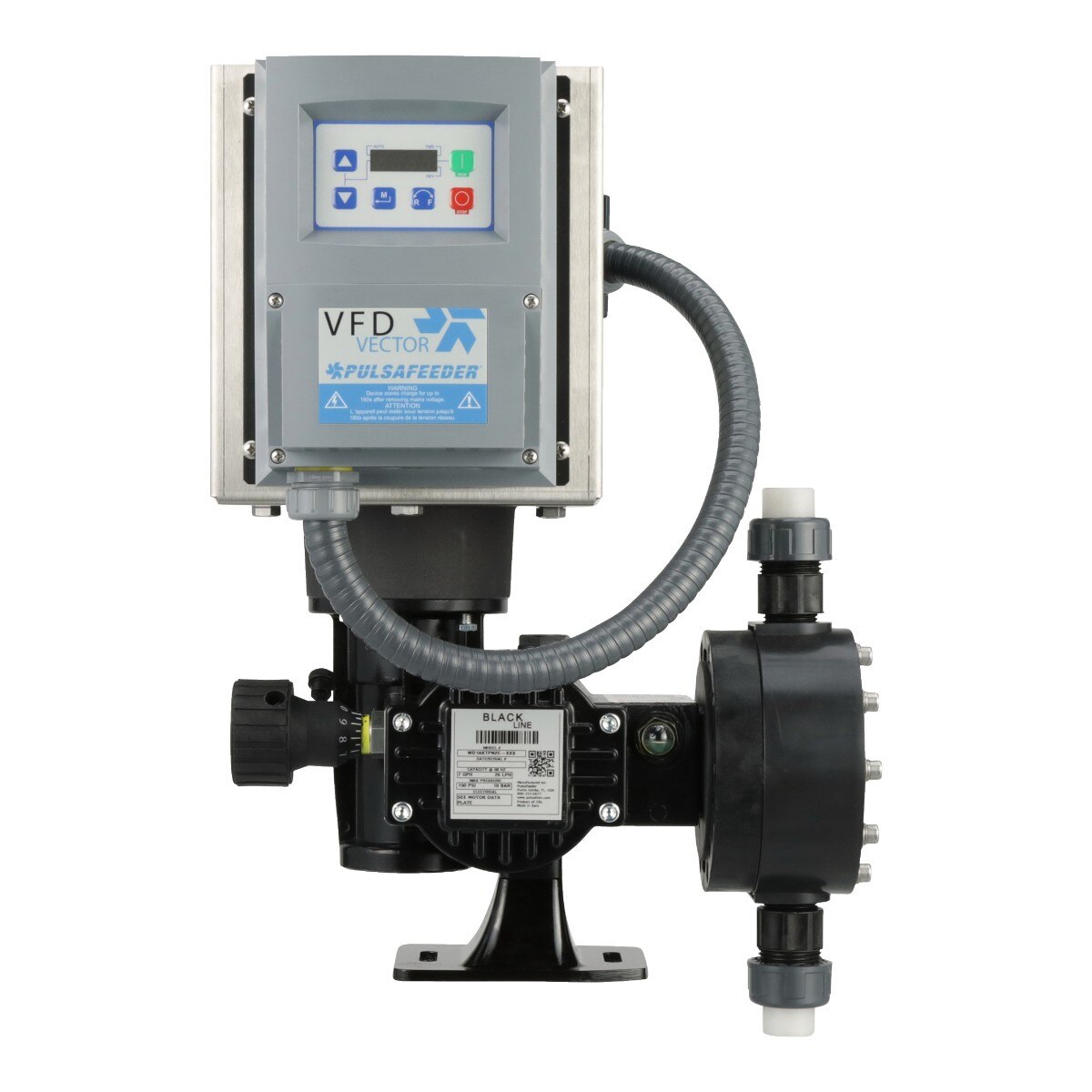

Pulsafeeder BLACKLINE Series MD Mechanical Diaphragm Metering Pump. (with VFD Variable Frequency Drive)
22 GPH – 150 PSI.
VFD Input Power: 115/230 VAC, 50/60 Hz, 1 Phase
Motor (Powered by VFD): TEFC – NEMA 56C, 3P, 230/460V, 50/60Hz, 1/2 Hp (VFD 10:1)
4-20 mA or 0-10VDC signal input controls stroke frequency 10:1 Turn-Down
Manual stroke length...
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | Blackline |
| Max Flow (GPH): | 22.0 |
| Max Flow (GPD): | 528.0 |
| Max Pressure (PSI): | 150 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 84 |
| Flow Control: | 4-20mA or 0-10VDC signal input controls stroke frequency, Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | PVDF / PVDF (Double Ball Check Valves) |
| Valve Balls: | Pyrex |
| Diaphragm: | PTFE faced, long life |
| Valve / Seat / O-Ring: | PTFE / PTFE |
| Motor: | TEFC – NEMA 56C, 1/2 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | Pipe 1/2″ FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
