Original price was: $6,030.00.$4,565.00Current price is: $4,565.00.
Model: MD1AKTPN2C-XXX
Flow Rate: 7 GPH (26.5 LPH)
Pressure Rating: Up to 150 PSI
Pump Type: Mechanically actuated diaphragm metering pump
Control: VFD (Variable Frequency Drive) for adjustable speed control
Construction: Durable thermoplastic or PVDF materials for chemical resistance
Power Supply: Typically supports 115V/230V depending on model specs
Manual or Automated Control: Accepts analog signals (e.g., 4-20 mA) for integration with PLCs or SCADA systems
Mounting Style: Base-mounted for secure, stable installation
Stroke Adjustment: Manual stroke length adjustment for fine-tuning dosing volume

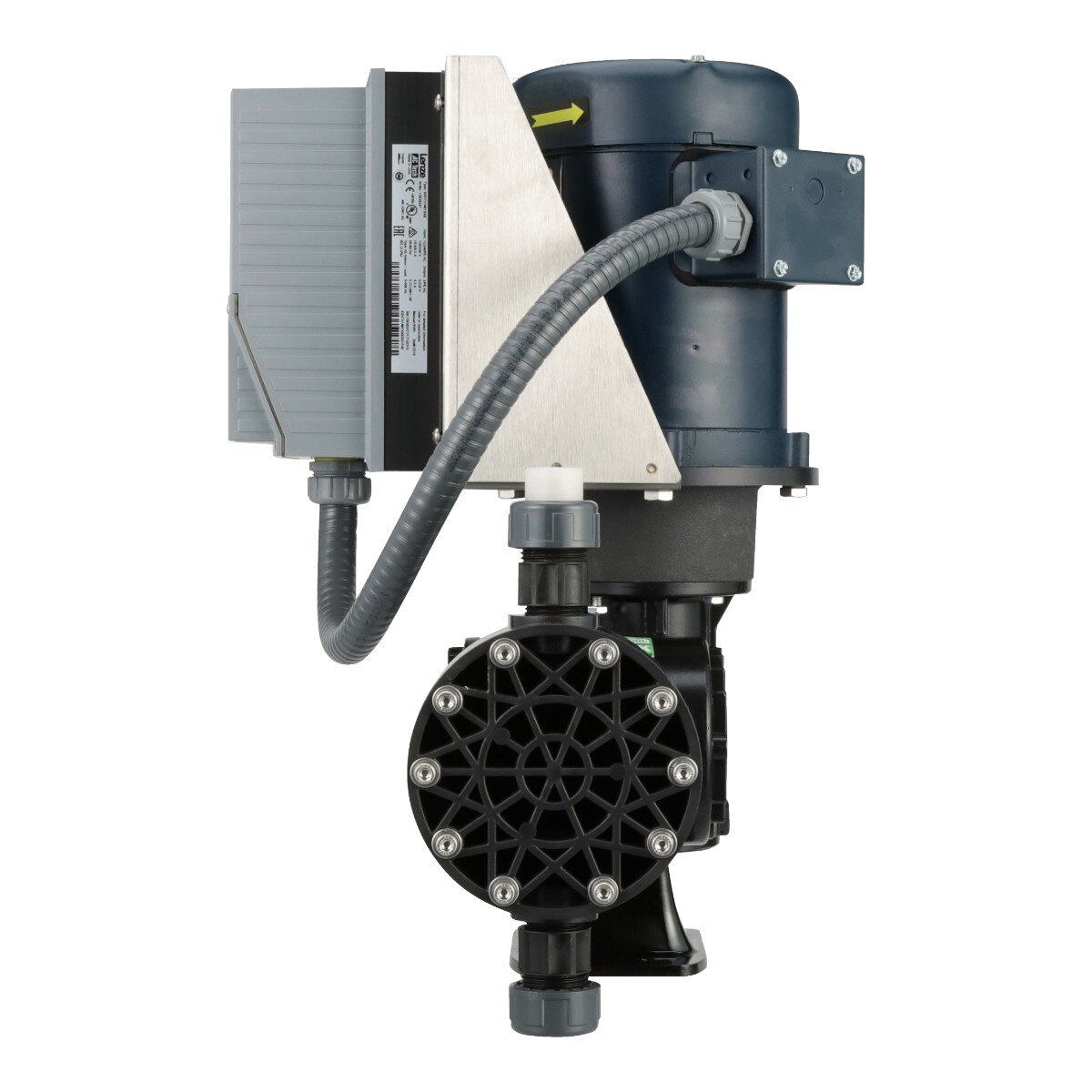

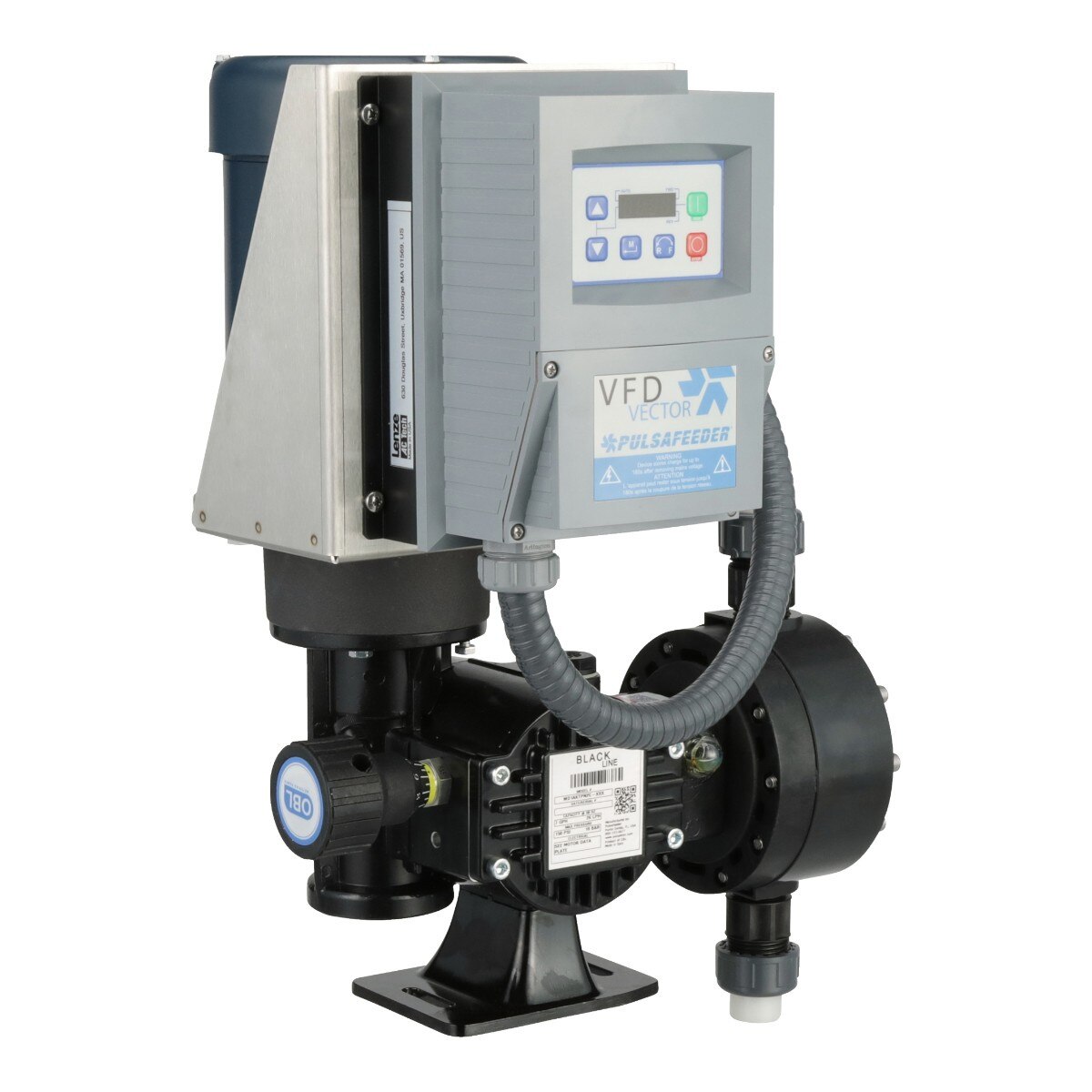

Pulsafeeder BLACKLINE Series MD Mechanical Diaphragm Metering Pump. (with VFD Variable Frequency Drive)
7 GPH 150 PSI.
VFD Input Power: 115/230 VAC, 50/60 Hz, 1 Phase
Motor (Powered by VFD): TEFC – NEMA 56C, 3P, 230/460V, 50/60Hz, 1/2 Hp (VFD 10:1)
4-20 mA or 0-10 VDC signal input controls stroke frequency 10:1 Turn-Down
Manual stroke length...
| Product Type: | Diaphragm Metering Pump, Mechanically Driven |
| Brand: | Pulsafeeder |
| Product Line: | Blackline |
| Max Flow (GPH): | 7.0 |
| Max Flow (GPD): | 168.0 |
| Max Pressure (PSI): | 150 |
| Max Viscosity (CPS): | 1000 |
| Max Strokes per Minute: | 84 |
| Flow Control: | 4-20mA or 0-10VDC signal input controls stroke frequency, Manual stroke length adjustment (0 to 100%) |
| Turn Down Ratio: | 100:1 |
| Head/Fittings: | PVDF / PVDF (Double Ball Check Valves) |
| Valve Balls: | Pyrex |
| Diaphragm: | PTFE faced, long life |
| Valve / Seat / O-Ring: | PTFE / PTFE |
| Motor: | TEFC – NEMA 56C, 1/2 Hp, 230/460 VAC, 50/60 Hz, 3 Phase |
| Connections: | Pipe 1/2″ FNPT |
| Power Supply: | 115/230 VAC, 50/60 Hz, 1 Phase |
| Operating Modes: | Manual, (VFD 10:1) |
| Net Weight: | 71.5 lbs |
| Includes: | Installation, Operation, and Maintenance Instruction Manual |
